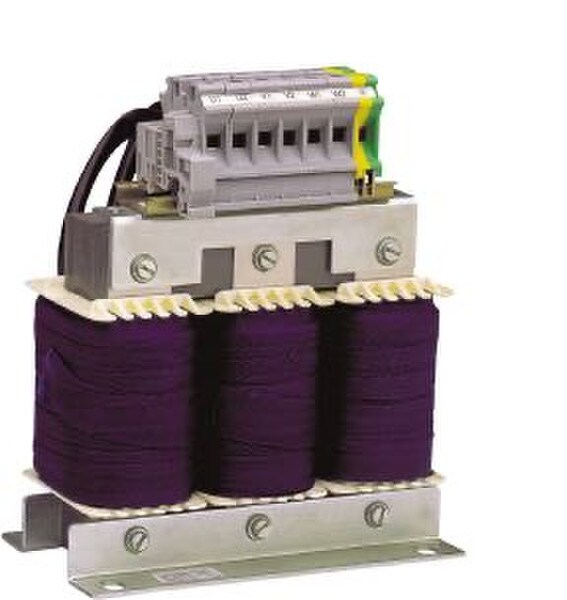

Input Choke; 70A, 400V 3ph, IP20

Three Phase AC Input Choke to 70A.
For use close to an Inverter Drive to reduce harmonic current or RMS load.

Current Rating: 70A.
Voltage: 500V 3 phase +-10%.
Inductance: 0.42mH.
Protection: IP20.
Weight: 11kg.

Dimensions: 230mm Length x 90mm Width x 270mm Height.
Mounting: via 9mm x 13mm slots at 176mm x 71mm centres.
Connections: Top mounted terminals suitable for up to 35mm² cable.

Part Number: CNW903/70.

Also know as Mains Choke, Line Reactor, AC Choke, AC Inductor and Input Choke.
