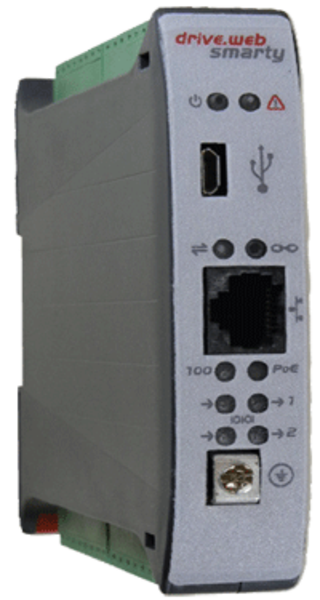

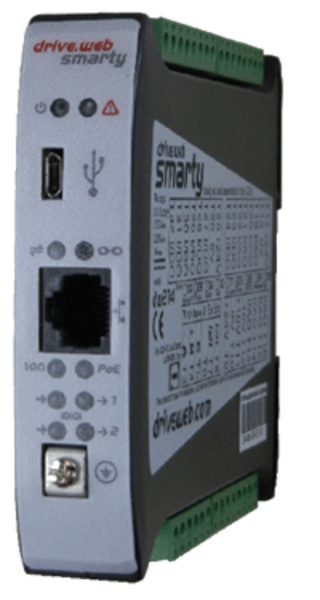

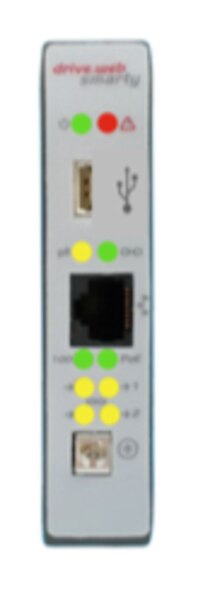

smarty Universal Automation Controller for E3 General Purpose VFDs

(0)No Reviews yet
$2,376.00
SKU: dw210-4010-04

1 Available

Select Store to check availability.

This item is IN STOCK

Quantity Available: 1

drive.web


The new drive.web smarty - series 2

The world's most powerful programmable controller for coordinated drives.

The new smarty brings greatly enhanced performance, smaller packaging value to the remarkable family of drive.web smarty and speedy products.

  • Easy interface to most drives
  • Use networked or stand alone
  • Internet accessible
  • Peer to peer deterministic Ethernet networking
    • 100baseTX or 10baseT Ethernet
    • Full duplex supported
    • Auto-negotiation
    • Auto-MDIX per IEEE802.3ab
    • Optional Power over Ethernet (PoE, IEEE 802.3af)
  • drive.web distributed control
  • Cost effective for systems of any size or complexity
  • Intuitive, graphical function block programming tools
  • Complete graphical configuration & documentation data stored in devices

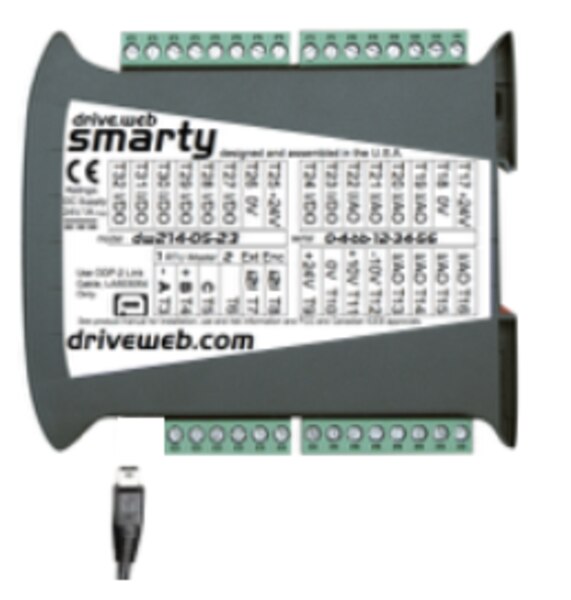

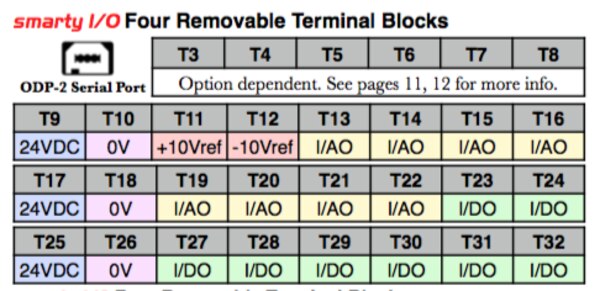

  • Basic i/o includes:
    • 8 terminals, configurable as either:
      • 16 bit analog inputs, +/- 10 volts
      • 14 bit analog outputs, +/- 10 volts
      • or, digital inputs, 24 volts
    • 8 terminals, configurable as either:
      • 16 bit analog inputs, 0 to 10 volts
      • digital inputs, 24 volts
      • or, digital outputs, +24 volts, source or sink
  • Optional i/o includes:
    • Encoder input (5 volts) without marker
    • 1 or 2 encoder inputs (5 or 14 volts) with marker and retransmit via external module
    • 1 or 2 isolated or unisolated RS485 ports
    • High voltage digital i/o isolator
    • CAN bus and others coming soon
    • USB programming port coming soon
  • Firmware field upgradable
  • 100% backward compatible with all existing drive.web installations
  • Compact, stylish DIN rail mounting package

Beats using any PLC on price performance and ease of programming!



smarty Universal Automation Controller for E3 General Purpose VFDs.
DIN rail mount, 24VDC with:

  • drive.web 10/100baseTX Ethernet networking
  • Basic savvyPanel touch screen PC & iOS controller
  • Basic function block programming
  • 8 config i/o: +/-10V analog in/out or 24V logic in (plug-in)
  • 8 config i/o: 0-10V Analog in or 24V logic in/out.  (plug-in)
  • DIN mount
