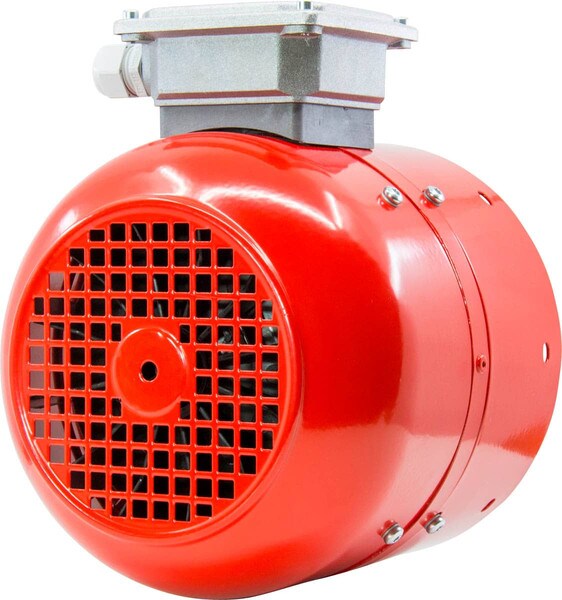

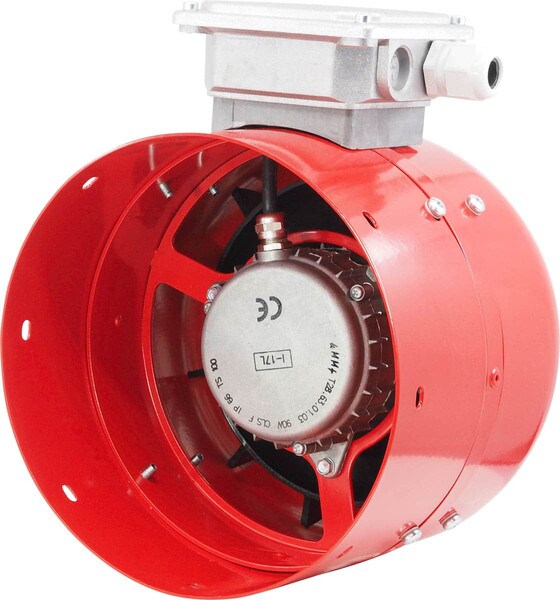

INVERTEK Forced Ventilation Unit Frame 132 IMA/IMP/IMPA

Forced Ventilation Unit IP66, suit frame 132 IMA/IMP/IMPA

Insulation: Class F
Az=255
Ah=225mm
B=245
C=116
D=129mm,
Gr=5mm
X=114.5mm

with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz"
207~303Vac D, 50Hz; 0.68A, 2619 1/min.
207~333Vac D, 60Hz; 0.67A, 2986 1/min.

and Three-Phase connection without capacitor
207~303Vac D / 360~525Vac Y, 50Hz; 0.64A / 0.37A; 2619 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.57A / 0.32A; 2986 1/min.
