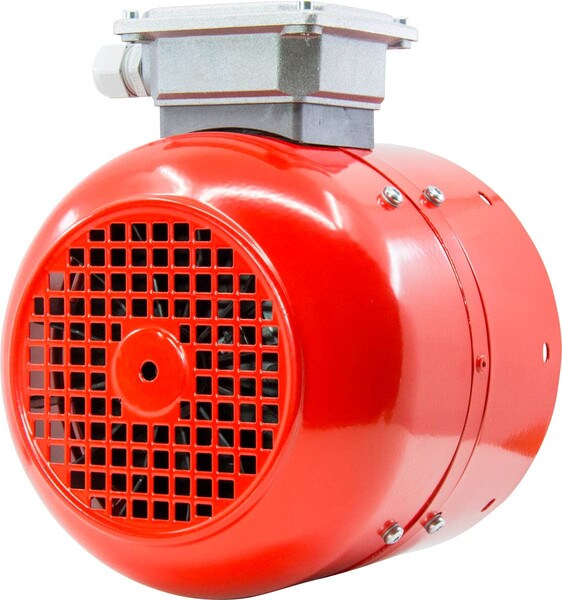

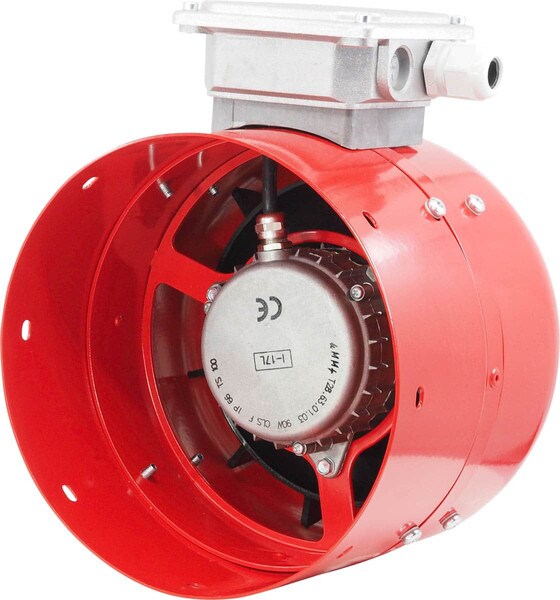

INVERTEK Forced Ventilation Unit Frame 90 IMA/IMP/IMPA

Forced Ventilation Unit IP66, suit frame 90 IMA/IMP/IMPA

Insulation cl.F
Az=174
Ah=174mm
B=213
C=95
D=118mm
Gr=5mm
X=83.5mm

with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz"
207~303Vac D, 50Hz; 0.65A, 2895 1/min.
207~333Vac D, 60Hz; 0.54A, 3480 1/min.

and Three-Phase connection without capacitor
207~303Vac D / 360~525Vac Y, 50Hz; 0.67A / 0.39A; 2895 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.57A / 0.33A; 3480 1/min.
