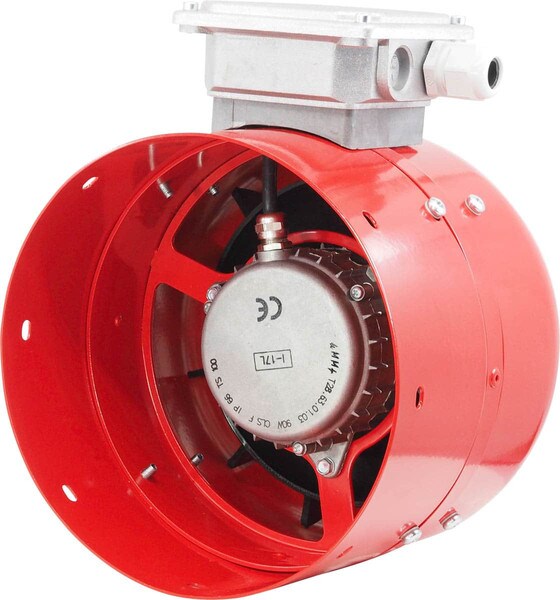

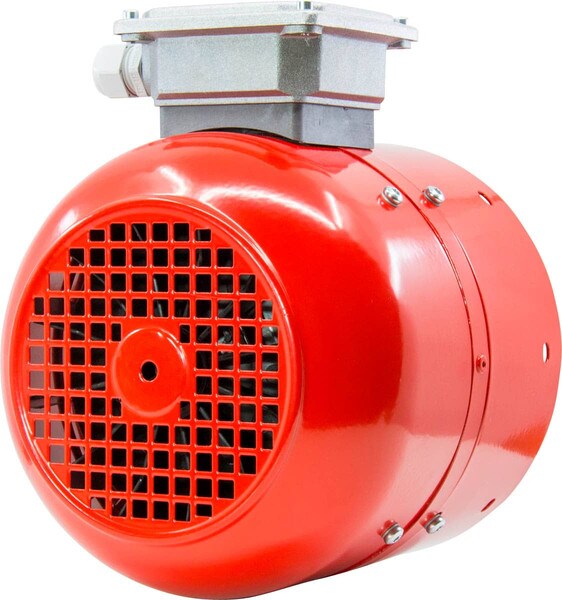

INVERTEK Forced Ventilation Unit Frame 80 IM/IMA/IMPA

Forced Ventilation Unit IP66, suit frame 80 IM/IMA/IMPA

Insulation cl.F,
Az=154
Ah=154mm
D=113mm
Gr=5mm
X=72.5mm

with PPN-Terminal Box IP66 (5671) & capacitor 4uF for Single-Phase connection "Steinmetz"
207~303Vac D, 50Hz; 0.66A, 2940 1/min.
207~333Vac D, 60Hz; 0.54A, 3580 1/min.

and Three-Phase connection without capacitor
207~303Vac D / 360~525Vac Y, 50Hz; 0.69A / 0.40A; 2940 1/min.
207~333Vac D / 360~575Vac Y, 60Hz; 0.58A / 0.33A; 3540 1/min.
