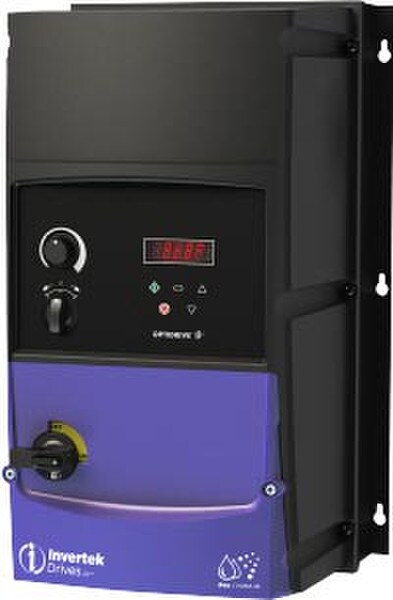

22 kW (30 HP), 46 A, 380-480 V, 3PHIP66 Outdoor Switched Variable Frequency Drive with EMC Filter
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 51.9 A |
| Supply Fuse or MCB (Type B) | 63 A |
Output Ratings
| Motor Output Rating | 22 kW (30 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 46 A |
Cable Information
| Max Supply Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC Filter |
| Brake Transistor | Internal Brake Transistor |
| Enclosure | IP66 Outdoor Switched |
Dimensions
| Size | 4 |
| Height | 360 mm (14.17 in) |
| Width | 240 mm (9.45 in) |
| Depth | 271 mm (10.67 in) |
| Weight | 9.5 kg (20.94 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
| Height | 325 mm (12.8 in) |
| Width | 295 mm (11.61 in) |
| Depth | 425 mm (16.73 in) |
| Weight | 11.5 kg (25.35 lbs) |
