  • IP55 Indoor Systems Vector Drive, 22kW, 400V, 3-ph in, 400V, 3-ph out

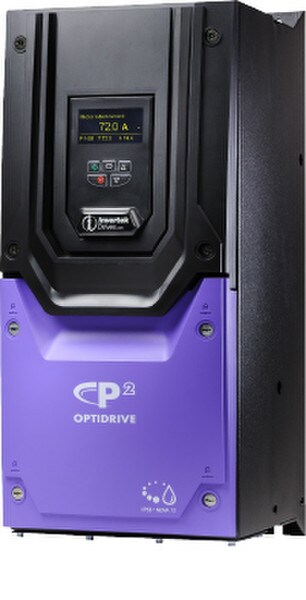

IP55 Indoor Systems Vector Drive, 22kW, 400V, 3-ph in, 400V, 3-ph out

(0)No Reviews yet
PLC Built-In
$4,989.00
SKU: P2-44220-3KF4N-TN

1 Available

Select Store to check availability.

This item is IN STOCK

Quantity Available: 1

High Performance

P2 Datasheet

Model: ODP-2-44220-3KF4NMN

Input Ratings

Supply Voltage380~480V
Input Phases3
Supply Current Continuous47.1 Amps
Supply Fuse or MCB (Type B)63 Amps

Output Ratings

Motor Output Rating22 kW
Output Voltage400V
Output Current46 Amps

Cable Information

Supply Cable Size25 mm2
Motor Cable Size19 mm2
Max motor cable length100 metres

Factory Build Options

EMC FilterInternal EMC
Brake TransistorInternal
EnclosureIP55 Non Switched
DisplayTFT Text
PCB CoatingStandard



Dimensions

Size4
Height440mm
Width171mm
Depth240mm
Weight11.5Kg
Packaged Weight13.2Kg
Fixings4 x M8
