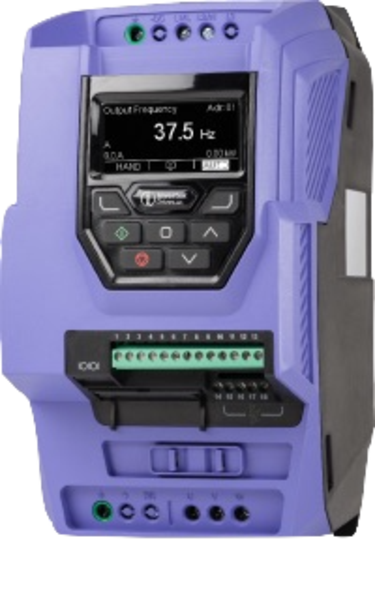

4 kW (5 HP), 18 A, 200-240 V, 3PHIP20 Variable Frequency Drive with EMC Filter and TFT Display Input Ratings
| Supply Voltage | 200-240 V |
| Input Phases | 3 |
| Supply Current Continuous | 14 A |
| Supply Fuse or MCB (Type B) | 16 A |
Output Ratings
| Motor Output Rating | 4 kW (5 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 18 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Drive Dimensions
| Size | 3 |
| Height | 261 mm (10.28 in) |
| Width | 131 mm (5.16 in) |
| Depth | 205 mm (8.07 in) |
| Weight | 3.5 kg (7.72 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
| Height | 325 mm (12.8 in) |
| Width | 165 mm (6.5 in) |
| Depth | 260 mm (10.24 in) |
| Weight | 3.7 kg (8.16 lbs) |
Download the Invertek Optidrive V3 Manual from the link below:-
