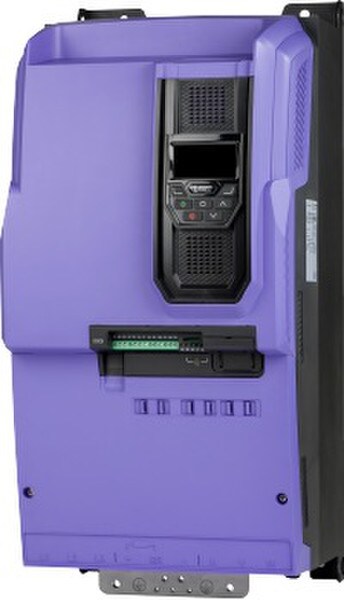

75 kW (100 HP), 150 A, 380-480 V, 3PHIP20 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 138.2 A |
| Supply Fuse or MCB (Type B) | 200 A |
Output Ratings
| Motor Output Rating | 75 kW (100 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 150 A |
Cable Information
| Max Supply Cable Size | 150 mm² (0.23 sq in) |
| Max Motor Cable Size | 150 mm² (0.23 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Dimensions
| Size | 6A |
| Height | 614 mm (24.17 in) |
| Width | 286 mm (11.26 in) |
| Depth | 320 mm (12.6 in) |
| Weight | 32 kg (70.55 lbs) |
| Fixings | - |
Packaged Dimensions
| Height | 380 mm (14.96 in) |
| Width | 375 mm (14.76 in) |
| Depth | 780 mm (30.71 in) |
| Weight | 45.7 kg (100.75 lbs) |
Download the Invertek Optidrive V3 Manual from the link below:-
