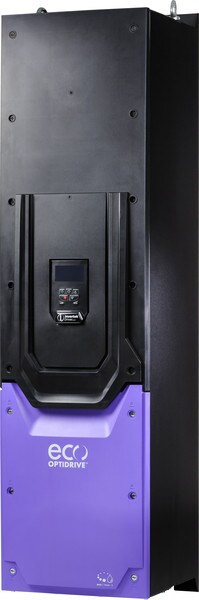

132 kW (200 HP), 240 A, 380-480 V, 3PHIP55 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 244.5 A |
| Supply Fuse or MCB (Type B) | 315 A |
Output Ratings
| Motor Output Rating | 132 kW (200 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 240 A |
Cable Information
| Max Supply Cable Size | 150 mm² (0.23 sq in) |
| Max Motor Cable Size | 150 mm² (0.23 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP55 |
| Display | TFT Display |
| PCB Coating | Standard |
Dimensions
| Size | 7 |
| Height | 1280 mm (50.39 in) |
| Width | 330 mm (12.99 in) |
| Depth | 358 mm (14.09 in) |
| Weight | 89 kg (196.21 lbs) |
| Fixings | 4 x M10 |
Packaged Dimensions
| Height | 1420 mm (55.91 in) |
| Width | 540 mm (21.26 in) |
| Depth | 560 mm (22.05 in) |
| Weight | 97 kg (213.85 lbs) |
Download the Invertek Optidrive V3 Manual from the link below:-
