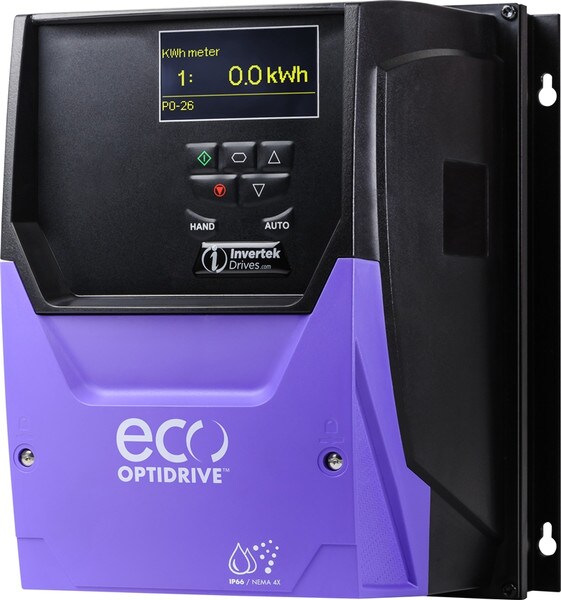

0.75 kW (1 HP), 4.3 A, 200-240 V, 1-3PHIP66 Non Switched Indoor Variable Frequency Drive with EMC Filter and OLED Text Display
Input Ratings
| Supply Voltage | 200-240 V |
| Input Phases | 1 |
| Supply Current Continuous | 8.5 A |
| Supply Fuse or MCB (Type B) | 10 A |
Output Ratings
| Motor Output Rating | 0.75 kW (1 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 4.3 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP66 Non Switched Indoor |
| Display | OLED Text |
| PCB Coating | Standard |
Dimensions
| Size | 2 |
| Height | 257 mm (10.12 in) |
| Width | 188 mm (7.4 in) |
| Depth | 260 mm (10.24 in) |
| Weight | 5.5 kg (12.13 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
| Height | 400 mm (15.75 in) |
| Width | 315 mm (12.4 in) |
| Depth | 370 mm (14.57 in) |
| Weight | 6 kg (13.23 lbs) |
