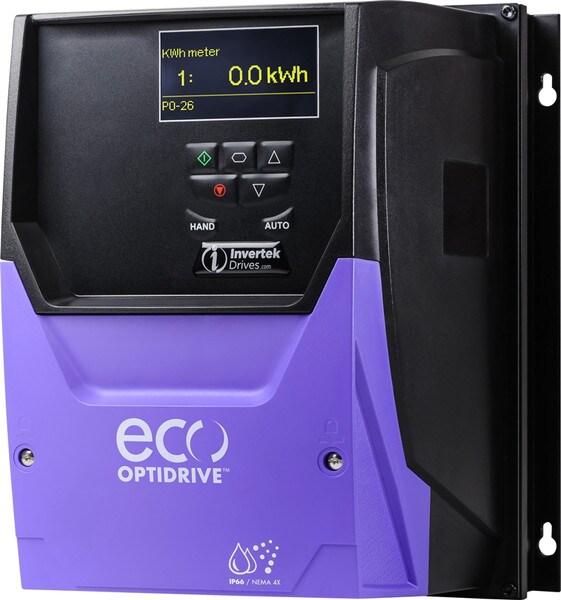

Energy Efficient Indoor Rated IP66, 1.5kW, 1Ph. In, 3Ph. Out, 200-240V

(0)No Reviews yet
PLC Built-In
$1,093.50
SKU: V3-220070-1F1X-TN

3 Available

Select Store to check availability.

This item is IN STOCK

Quantity Available: 3

Fan & Pump Control

ECO Variable Frequency Drive Datasheet

Model: ODV-3-220070-1F1XTN

Input Ratings

Supply Voltage200-240V
Input Phases1
Supply Current Continuous13.9 Amps
Supply Fuse or MCB (Type B)16 Amps

Output Ratings

Motor Output Rating1.5 kW
Output Voltage230V
Output Current7 Amps

Cable Information

Supply Cable Size2.5 mm2
Motor Cable Size1.5 mm2
Max motor cable length100 metres

VFD Factory Build Options

EMC FilterInternal EMC
Brake TransistorNo Brake Transistor
EnclosureIP66 Non Switched
DisplayOLED Text
PCB CoatingStandard

Installation Options & Peripherals

Dimensions

Size2
Height257mm
Width188mm
Depth260mm
Weight5.5Kg
Packaged WeightKg
Fixings4 x M4

Download the Invertek Optidrive V3 Manual from the link below:-
