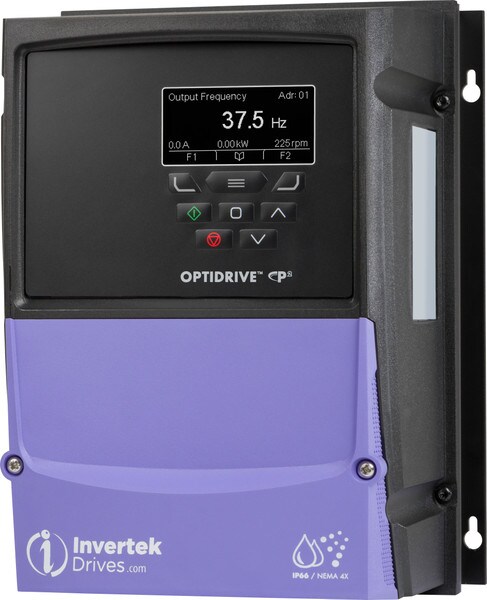

IP66 Outdoor Systems Vector Drive, 4kW, 400V, 3-ph in, 400V, 3-ph out

(0)No Reviews yet
$1,877.00
SKU: P2-24400-3KF4A-MN

3 Available

Select Store to check availability.

This item is IN STOCK

Quantity Available: 3

High Performance


4 kW, 9.5 A, 380-480 V, 3PHIP66 Non Switched Outdoor Variable Frequency Drive with EMC Filter and TFT Display

Input Ratings
Supply Voltage380-480 V
Input Phases3
Supply Current Continuous11.2 A
Supply Fuse or MCB (Type B)16 A

Output Ratings

Motor Output Rating4 kW (5 HP)
Output Voltage0 – Supply Voltage
Output Current9.5 A

Cable Information

Max Supply Cable Size8 mm² (0.01 sq in)
Max Motor Cable Size8 mm² (0.01 sq in)
Max Motor Cable Length100 m (328 ft)

Factory Build Options

EMC FilterInternal EMC
Brake TransistorInternal
EnclosureIP66 Non Switched Outdoor
DisplayTFT Display
PCB CoatingStandard

Dimensions

Size2
Height257 mm (10.12 in)
Width188 mm (7.4 in)
Depth182 mm (7.17 in)
Weight4.8 kg (10.58 lbs)
Fixings4 x M4

Packaged Dimensions

Height215 mm (8.46 in)
Width235 mm (9.25 in)
Depth375 mm (14.76 in)
Weight4.2 kg (9.26 lbs)

Download the Invertek Optidrive P2 Manual from the link below:-
