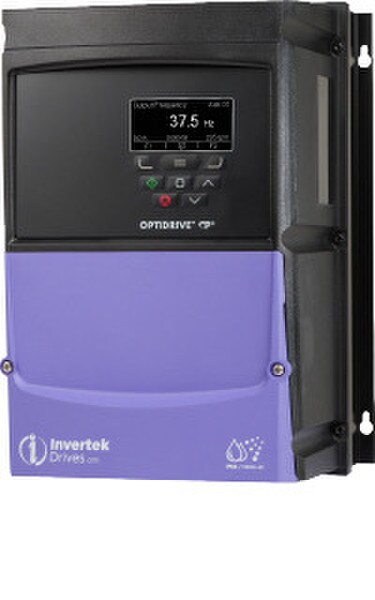

7.5 kW, 18 A, 380-480 V, 3PHIP66 Non Switched Outdoor Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 21 A |
| Supply Fuse or MCB (Type B) | 32 A |
Output Ratings
| Motor Output Rating | 7.5 kW (10 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 18 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP66 Non Switched Outdoor |
| Display | TFT Display |
| PCB Coating | Standard |
Dimensions
| Size | 3 |
| Height | 310 mm (12.2 in) |
| Width | 211 mm (8.31 in) |
| Depth | 235 mm (9.25 in) |
| Weight | 7.7 kg (16.98 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
| Height | 305 mm (12.01 in) |
| Width | 270 mm (10.63 in) |
| Depth | 440 mm (17.32 in) |
| Weight | 7.6 kg (16.76 lbs) |
Download the Invertek Optidrive P2 Manual from the link below:-
