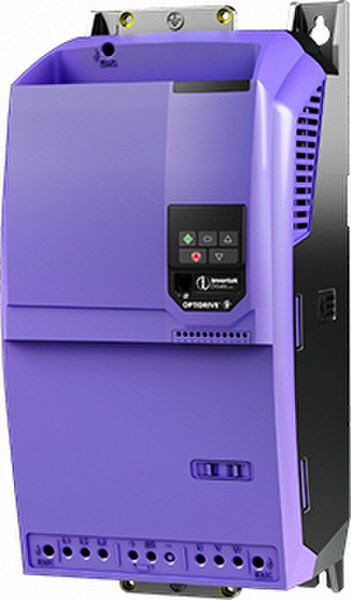

22 kW (30 HP), 46 A, 380-480 V, 3PHIP20 Variable Frequency Drive with EMC Filter
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 51.9 A |
| Supply Fuse or MCB (Type B) | 63 A |
Output Ratings
| Motor Output Rating | 22 kW (30 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 46 A |
Cable Information
| Max Supply Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC Filter |
| Brake Transistor | Internal Brake Transistor |
| Enclosure | IP20 |
Dimensions
| Size | 4 |
| Height | 420 mm (16.54 in) |
| Width | 171 mm (6.73 in) |
| Depth | 212 mm (8.35 in) |
| Weight | 9.1 kg (20.06 lbs) |
| Fixings | 4 x M8 |
Packaged Dimensions
| Height | 340 mm (13.39 in) |
| Width | 282 mm (11.1 in) |
| Depth | 560 mm (22.05 in) |
| Weight | 10.5 kg (23.15 lbs) |
