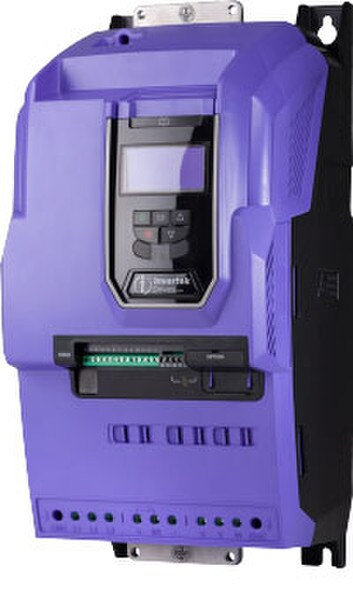

22 kW, 46 A, 380-480 V, 3PHIP20 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 52.4 A |
| Supply Fuse or MCB (Type B) | 63 A |
Output Ratings
| Motor Output Rating | 22 kW (30 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 46 A |
Cable Information
| Max Supply Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Size | 16 mm² (0.02 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Dimensions
| Size | 4 |
| Height | 418 mm (16.46 in) |
| Width | 172 mm (6.77 in) |
| Depth | 240 mm (9.45 in) |
| Weight | 9.2 kg (20.28 lbs) |
| Fixings | N/A |
Packaged Dimensions
| Height | 340 mm (13.39 in) |
| Width | 280 mm (11.02 in) |
| Depth | 560 mm (22.05 in) |
| Weight | 11 kg (24.25 lbs) |
Download the Invertek Optidrive P2 Manual from the link below:-
