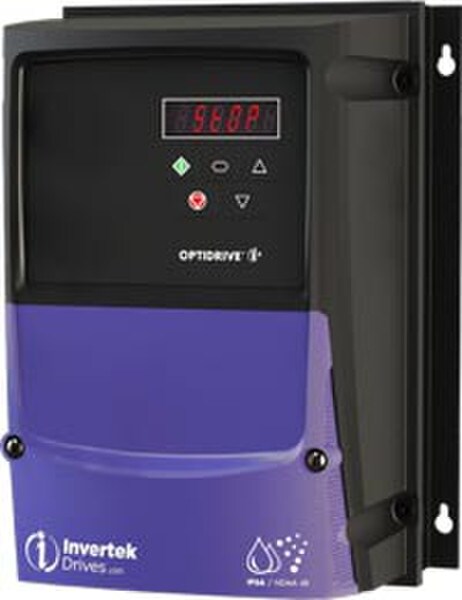

0.75 kW (1 HP), 2.2 A, 380-480 V, 3PHIP66 Outdoor Non-switched Variable Frequency Drive with EMC Filter
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 3.5 A |
| Supply Fuse or MCB (Type B) | 6 A |
Output Ratings
| Motor Output Rating | 0.75 kW (1 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 2.2 A |
Cable Information
| Max Supply Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Size | 8 mm² (0.01 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC Filter |
| Brake Transistor | No Internal Brake Transistor |
| Enclosure | IP66 Outdoor Non-switched |
Dimensions
| Size | 1 |
| Height | 232 mm (9.13 in) |
| Width | 161 mm (6.34 in) |
| Depth | 162 mm (6.38 in) |
| Weight | 2.3 kg (5.07 lbs) |
| Fixings | 4 x M4 |
Packaged Dimensions
| Height | 205 mm (8.07 in) |
| Width | 210 mm (8.27 in) |
| Depth | 345 mm (13.58 in) |
| Weight | 2.9 kg (6.39 lbs) |
Download the Invertek E3 Manuals from the links below:-
