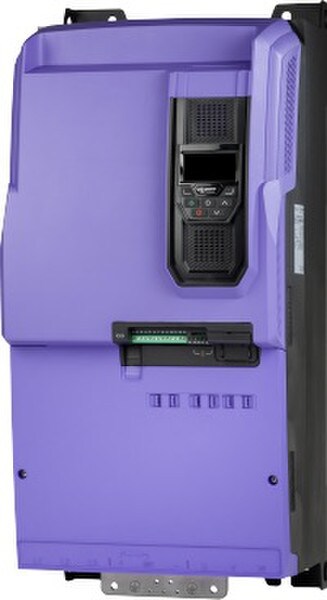

37 kW (50 HP), 72 A, 380-480 V, 3PHIP20 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 58 A |
| Supply Fuse or MCB (Type B) | 80 A |
Output Ratings
| Motor Output Rating | 37 kW (50 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 72 A |
Cable Information
| Max Supply Cable Size | 35 mm² (0.05 sq in) |
| Max Motor Cable Size | 35 mm² (0.05 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | No Brake Transistor |
| Enclosure | IP20 |
| Display | TFT Display |
| PCB Coating | Standard |
Dimensions
| Size | 5 |
| Height | 486 mm (19.13 in) |
| Width | 233 mm (9.17 in) |
| Depth | 260 mm (10.24 in) |
| Weight | 18.1 kg (39.9 lbs) |
| Fixings | - |
Packaged Dimensions
| Height | 356 mm (14.02 in) |
| Width | 336 mm (13.23 in) |
| Depth | 658 mm (25.91 in) |
| Weight | 22.4 kg (49.38 lbs) |
Download the Invertek Optidrive V3 Manual from the link below:-
