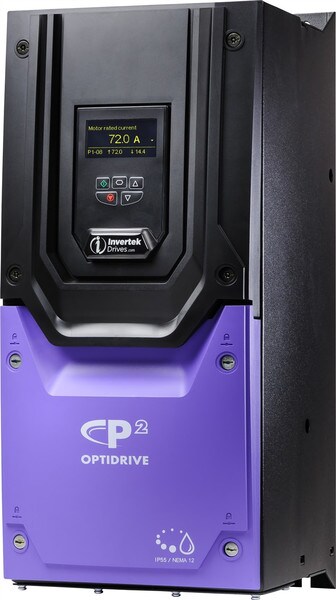

55 kW, 110 A, 380-480 V, 3PHIP55 Variable Frequency Drive with EMC Filter and TFT Display
Input Ratings
| Supply Voltage | 380-480 V |
| Input Phases | 3 |
| Supply Current Continuous | 102.2 A |
| Supply Fuse or MCB (Type B) | 125 A |
Output Ratings
| Motor Output Rating | 55 kW (75 HP) |
| Output Voltage | 0 – Supply Voltage |
| Output Current | 110 A |
Cable Information
| Max Supply Cable Size | 150 mm² (0.23 sq in) |
| Max Motor Cable Size | 150 mm² (0.23 sq in) |
| Max Motor Cable Length | 100 m (328 ft) |
Factory Build Options
| EMC Filter | Internal EMC |
| Brake Transistor | Internal |
| Enclosure | IP55 |
| Display | TFT Display |
| PCB Coating | Standard |
Dimensions
| Size | 6 |
| Height | 865 mm (34.06 in) |
| Width | 330 mm (12.99 in) |
| Depth | 332 mm (13.07 in) |
| Weight | 55 kg (121.25 lbs) |
| Fixings | 4 x M10 |
Packaged Dimensions
| Height | 980 mm (38.58 in) |
| Width | 450 mm (17.72 in) |
| Depth | 450 mm (17.72 in) |
| Weight | 56.5 kg (124.56 lbs) |
Download the Invertek Optidrive P2 Manual from the link below:-
